Description
Multimode OTDRs require a pulse suppressor (dead-zone) box.

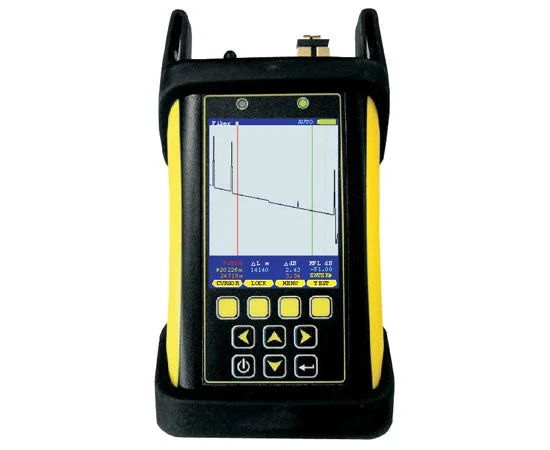

Trek II OTDR Multimode 1300nm
With an unbeatable combination of a small pocket-sized form factor, a 2.8″ high-resolution color LCD display, and some of the lowest pricing in the industry, Trek II multimode OTDRs are the wise choice for cost-conscious buyers who need to perform basic troubleshooting or restoration tasks on multimode optical fiber networks. All this from OTDRs that really are pocket-sized and fair priced, yet have comparable features and specifications to other OTDRs in their class.
Features
Features
- 2.8″ color LCD display automatically rotates based on orientation of OTDR (portrait vs. landscape)
- Live Mode allows users to expand OTDR display onto larger laptop screen
- Automatically locates events and places them in an internal event table
- Full horizontal and vertical pan/zoom function
- User-selectable parameters such as index of refraction test mode, pulse width, and averaging
- Integrated user help screens
- SC/UPC connector port
- USB interface for downloading stored readings
- Integrated visual fault locator
- Re-chargeable Lithium Polymer battery
- 20 hours of normal usage
Specifications
Specifications
| Optical Specifications | |
|---|---|
| Output Wavelength | 1300nm |
| Fiber Type | Multimode |
| Dynamic Range | 29dB |
| Event Dead Zone | 2 meters (typical) |
| Attenuation Dead Zone | 5 meters (typical) |
| Maximum Data Points | 64000 |
| Data Point Spacing | 1 meter |
| Pulse Width | 1, 2, 5, 10, 20, 50, 100 meters |
| Index of Refraction | 1.4000 to 1.6000 |
| Distance Accuracy | 1 + (distance in meters/10000) |
| Distance Range4 | 20 kilometers / 12 miles |
| Number of Stored Traces | Maximum trace distance: up to 400 // Minimum trace distance: 3000+ |
| General Specifications | |
|---|---|
| Display Type | High-resolution Color LCD |
| Display Size | 2.8″ diagonal |
| Battery Type | Lithium Polymer |
| Battery Life | up to 20 hours normal usage |
| Dimensions | 2.87″ x 4.42″ x 1.25″ |
| Weight | 10 ounces (284 g) |
| Visual Fault Locator Specifications | |
|---|---|
| Output Wavelength | 650nm |
| Output Power | 1 mW |
| Operating Mode | CW / Flash |
