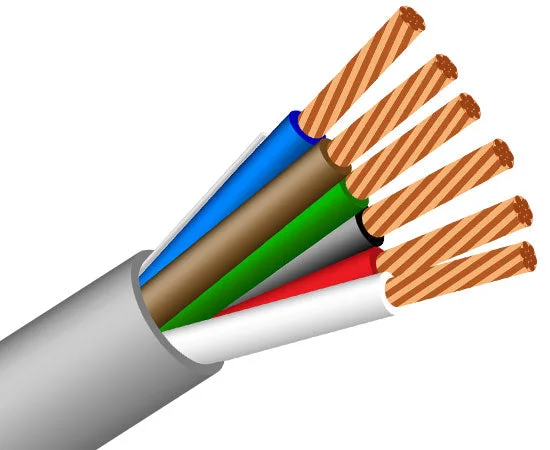

Security Alarm Cable 22/6 (7 Strand) Plenum CMP Rated Shielded 1000′
Crafted for security systems, this 22 AWG 6-conductor Security Alarm Cable is versatile for intercoms, power-limited controls, and sound/audio systems. Built with 7 strands of solid bare copper wire, it features a shielded plenum CMP-rated white jacket, proudly made in the USA. Supplied in 1000 ft. increments, this 22/6 Security Cable combines quality with convenience.
Our Bulk Security Alarm Cables, known as alarm wire, are designed to meet alarm system installation requirements. With a diverse stock of high-quality alarm cables, including both riser and plenum-rated jackets, we cater to all your needs. Prior to purchase, ensure compliance with building code requirements. The cables also include print legends for quick identification, saving valuable time during installation and making them the preferred choice for various applications.
Explore Our Selection of Security Alarm Cable
Plenum – CMP
Shielded Plenum – CMP
Unshielded Riser – CMR
Shielded Riser – CMR
Unshielded Outdoor – CMX
Water Block
Applications
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, setup, and termination time is shorter.
Features
Features
- 22 AWG 6 Conductors
- 7 Stranded Bare Copper Conductors
- Low Smoke PVC Insulation
- AL Foil Shielded
- Low Smoke White PVC Jacket
- Sequential Footage Marking
- CL3P, CMP FT6 Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
- 14-12 AWG: FPLP, CL3P
Residential Or Commercial Applications
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 22 AWG |
| Insulation | PVC |
| Nominal OD | 4.52mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristics |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMP | CL3P |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 22 AWG 6C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
