MTP® Elite Cassette – 1×12 Fiber MTP/PC Elite-Male (With Pins), LC/UPC 12 Fiber, MM, 50/125um, OM3, Aqua Adapters, LGX Compatible, A-Polarity

Description

NOTE: This 12 fiber cassette is male and requires one 12 Strand MTP® Elite (female) cable

MTP® Elite Cassette – 1×12 Fiber MTP/PC Elite-Male (With Pins), LC/UPC 12 Fiber, MM, 50/125um, OM3, Aqua Adapters, LGX Compatible, A-Polarity

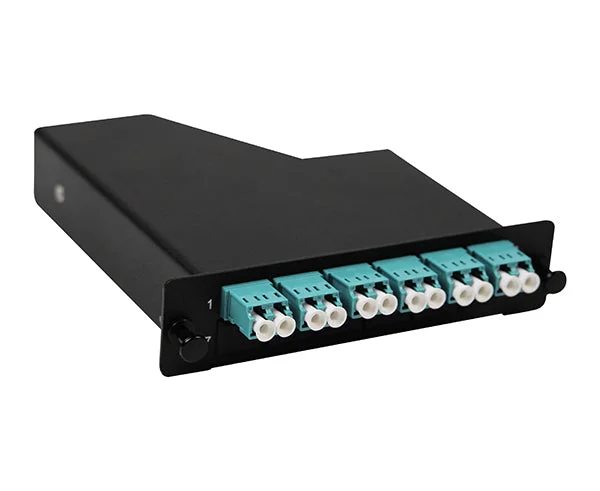

This 12-fiber MTP® Elite-to-LC Cassette is specifically designed for High-Density Fiber Cable Data solutions. The MTP® Elite Cassette comes pre-terminated with (1) 12-Fiber Male MTP® Elite connector on the back side and 12 separate LC connectors on the front panel. Inside the MTP® Elite cassette, there is a fan-out (or breakout) cable assembly from the LC connector in the front to the MTP® Elite connector in the back, providing a quick and easy plug-and-play data solution. This cassette utilizes a physical contact connector with ultra-low insertion loss (MTP® Elite Cables reduce insertion loss by up to 50% compared to standard MTP® Elite connectors and traditional MPO connectors).

From the front of your cassette, you may patch out with standard duplex (or simplex) fiber optic patch cables to your equipment such as an SFP module or fiber optic media converter. The cassette can be installed in either a vertical or a horizontal MPO cassette holder.

The use of our MTP® Elite cassettes in the data center offers the advantage of greater manageability and amiability with a modular infrastructure. It also allows for rapid deployment of fiber optic cabling in data centers, corporate campuses, or any high-density installation. As future connectivity requirements change, cassettes can be easily exchanged to meet those needs, while leaving the existing trunk cable infrastructure in place. These cassettes are designed to fit our standard LGX termination box enclosures.

Applications:

• Data Centers
• Server Connectivity
• Link Aggregation
• Fiber Optic Network Infrastructure

Benefits

• Rapid Deployment of High Density Fiber
• MTP® Elite Components Feature Superior Optical and Mechanical Properties
• Reliability – 100% tested – a combination of high-quality components and manufacturing quality control guarantees the product to the highest standards.

Features

Features

• MTP® Elite to Duplex LC Connections
• 12 LC (6 Duplex) Port on the Front
• (1) 12 Fiber Male MTP® Elite Connector on the Back
• MTP® Elite: Ultra Low Insertion Loss
• LGX footprints
• LGX Pin Spacing
• MTP® Elite Gender: Male
• Method A Type Polarity
• Multimode OM3 50/125 Fiber Type
• UPC Polish Type
• Quick and Easy Plug-and-play Data Solution
• RoHS Compliant

Specifications
