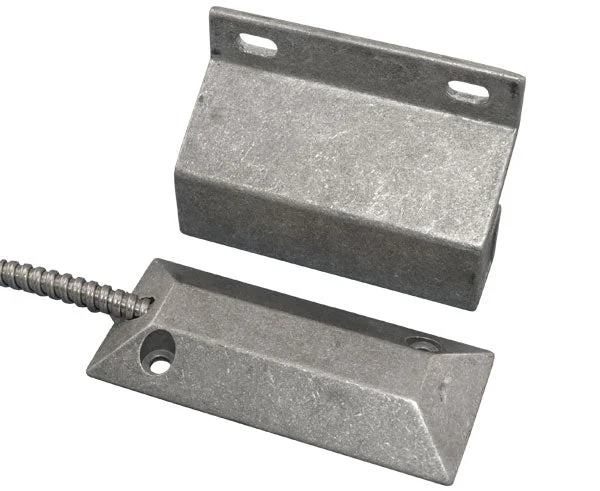

Miniature Overhead Door Floor Mount Magnetic Switch Set
The Overhead Door Contact Miniature Floor Mount Switch Set comprises a low-profile reed switch crafted from durable cast aluminum. It comes in closed loop, open loop, open/closed SPDT, or DPDT configurations. With a wide working gap of up to 2 1/2″ (three feet for DPDT version), it includes heavy-duty armored cable for added durability.
The armored cable ensures protection from the elements, while the universal magnet allows for flexible mounting angles in challenging installations. Installation requires a 1/4″ masonry bit for lead anchor installation.
Features
Features
- Miniature floor mount
- Available in closed loop, open loop, SPDT or DPDT
- 24″ armored cable (DPDT version comes with 36″ cable)
- Universal magnet for flexibility in mounting
- Cast aluminum casings for harsh environments
- Plated contacts resist sticking or freezing
- Up to 2 1/2″ gap for loose overheads
- Reed switch for reliability
- Mounting hardware included
- Hermetically sealed
- UL and ULC approved
- Made in U.S.A.
- Low cost
Specifications
Specifications
Technical Specs: Closed Loop
|
|
|
| Loop Type: |
|
Closed |
|
| Electrical Config: |
|
N/O |
| Reed Form: |
|
A |
|
| Maximum Intitial Contact Resistance (Ω): |
|
.150 |
| Maximum Contact Rating (W): |
|
10 |
|
| Maximum Switching Voltage (VDC): |
|
200 |
| Maximum Switching Current (A): |
|
.500 |
|
Technical Specs: Open Loop
|
|
|
| Loop Type: |
|
Open |
|
| Electrical Config: |
|
N/C |
| Reed Form: |
|
B |
|
| Maximum Intitial Contact Resistance (Ω): |
|
.140 |
| Maximum Contact Rating (W): |
|
5 |
|
| Maximum Switching Voltage (VDC): |
|
175 |
| Maximum Switching Current (A): |
|
.250 |
|
Technical Specs: Open/Closed SPDT
|
|
|
| Loop Type: |
|
Open/Closed |
|
| Electrical Config: |
|
SPDT |
| Reed Form: |
|
C |
|
| Maximum Intitial Contact Resistance (Ω): |
|
.140 |
| Maximum Contact Rating (W): |
|
5 |
|
| Maximum Switching Voltage (VDC): |
|
175 |
| Maximum Switching Current (A): |
|
.250 |
|
Technical Specs: Open/Closed DPDT
|
|
|
| Loop Type: |
|
|
|
| Electrical Config: |
|
DPDT |
| Reed Form: |
|
Cx2 |
|
| Maximum Intitial Contact Resistance (Ω): |
|
.140 |
| Maximum Contact Rating (W): |
|
5 |
|
| Maximum Switching Voltage (VDC): |
|
175 |
| Maximum Switching Current (A): |
|
.250 |
|
What’s in the Box
What’s in the Box
- (1) – Miniature Overhead Door Floor Mount Switch Set
- (1) – Two Feet of Armored Cable
- (1) – Mounting Hardware
