Description

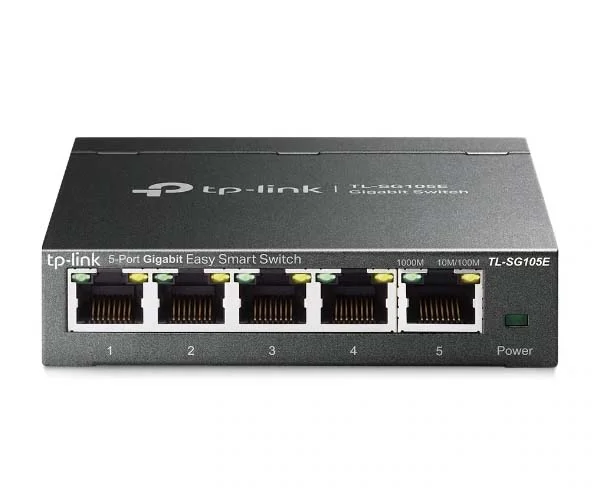

5-Port Gigabit Easy Smart Switch
Easily Expand Your Gigabit Network and Save Energy with this 5-Port Gigabit Easy Smart Switch
Gigabit Ports For Maximum Speed
5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.
Management Made Easy
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Durable Metal Casing
The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.
Go Green With Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Features
Features
- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 x 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm) |
| Max Power Consumption | 2.82 W (220V/50Hz) |
| Max Heat Dissipation | 9.62 BTU/h |
| PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 7.4 Mbps |
| MAC Address Table | 2 k |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Max Power Consumption | 2.82 W (220V/50Hz) |
| Max Heat Dissipation | 9.62 BTU/h |
| GENERAL | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents |
TL-SG105E Power Adapter Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional Information
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don’t require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. These Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What’s in the Box
What’s in the Box
- Qty 1 – TL-SG105E
- Qty 1 – Power Adapter
- Qty 1 – Installation Guide
- Qty 4 – Rubber Feet
