12″ x 12″ Fire-Rated Uninsulated Recessed Panel for Tile Walls – Acudor

Description

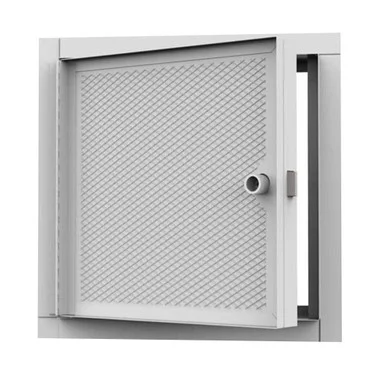

12″ x 12″ Fire-Rated Uninsulated Recessed Panel for Tile Walls – Acudor – For Wall Use Only

If you want an access door that blends well with your commercial building’s interior design, then the Acudor 12” x 12” FB-5060-TD is the one you need! This access door is uninsulated, fire-rated, and recessed for tile applications in fire-rated walls.

What’s great about the FB-5060?

• Recessed ½” and is lined with self-furring lath
• Designed to maintain continuity in a 2-hour fire barrier wall
• Inside latch release
• Self-closing & self-latching door mechanism

Durability is assured with this access door since its doors are made of steel with 16 gauge, reinforced edges, and a door panel recessed 1/2″ and lined with self-furring lath. In addition, this access door has a continuously exposed piano hinge for a swift open and close mechanism.

Best of all, the FB-5060 TD has a fire-rating of UL — 1-1/2 hour “B” label and ULC — 2 hours “B” label. You can order customized sizes with a maximum length of 36 x 48 inches.

Furthermore, this access door comes with a universal self-latching bolt, operated by a flush key. When master keying is required, manufacturers can prepare the doors for rim or mortise cylinder locks. And finally, it is finished with a 5 stage iron phosphate preparation with a prime coat of White alkyd baked-on enamel.

Get the quality access door you deserve!

You can always trust that Access Doors and Panels will consistently deliver top-quality products for any construction needs! Do you want to purchase this access door? Please request a quote from us now! Call (800) 609-2917 for more details.
